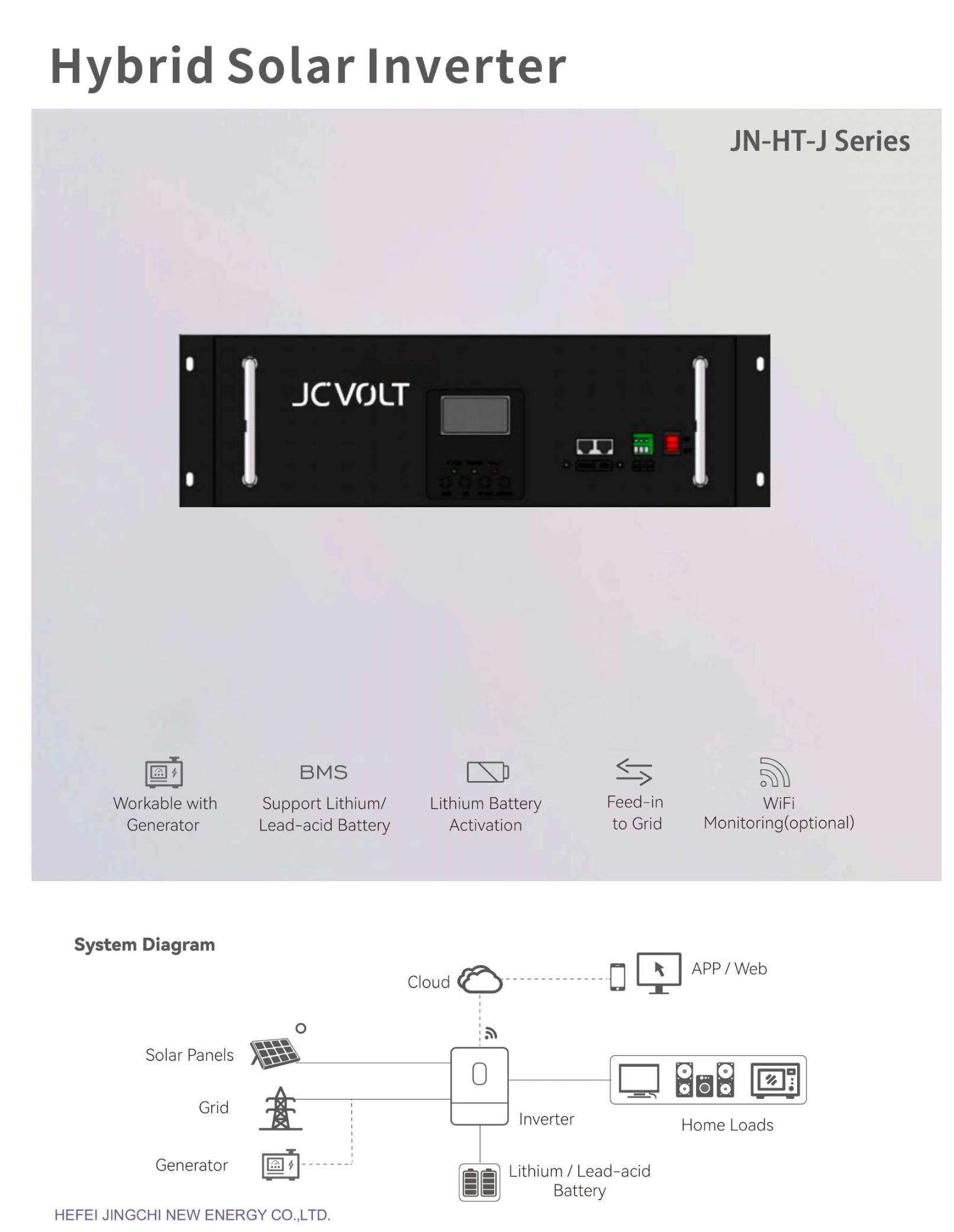

Products Description
Model
6248MH-J
11048MH-J
Input
Input source
L+N+PE
Rated input voltage
220/230/240VAC
Voltage range
90-280VAC 3V (APL mode) 170-280VAC 3V (UPS mode)
Frequency
50Hz/60Hz (automatic adaptation)
Output
Rated capacity
6200W
11000W
Output voltage
220/230/240VAC±5%
Output frequency
50/60Hz±0.1%
Wave form
pure sine wave
Transmission time
(adjustable)
Computer (UPS mode) 10 milliseconds, household equipment (APL mode) 20 milliseconds.
Peak power
12400VA
22000VA
Overload capacity
Battery mode:
21s@105%~150% negative 11s@150%~200% load400ms@>200% load
Peak efficiency (battery mode)
>98%
>98%
Battery
Battery voltage
48Vdc
48Vdc
Constant charge
Voltage (adjustable)
56.4Vdc
56.4Vdc
Floating charge
Voltage (adjustable)
54Vdc
54Vdc
Charger
PV charging mode
MPPT
Two-way MPPT
Maximum PV input power
6200W
2*5500W
MPPT Tracking range
120~500 Vdc
90~500 Vdc
Optimum voltage
300~400V
300~400V
Maximum PV input voltage
500Vdc
500Vdc
Maximum PV charging current
100A
150A
AC charging
80A
150A
Current maximum value
Maximum value of charging current
120A
150A
Show
LCD
Display operation mode/load/input/output, etc.
Connect
RS485
Baud rate 2400 9600
Communication port
Lithium battery BMS communication card, wireless card, dry contact
Environment
Working temperature
-10-50℃
Humidity
20%~95% (non-condensing)
Storage temperature
-15~60℃
Altitude
The altitude does not exceed 1000m, and the derating is over 1000m, with a maximum of 4000m. Refer to IEC62040.
Noise
≤50 dB
Protection
Overload Protection
Over battery mode: Auto protect & shut off
Battery Protection
Over-charge and Over-discharge
Other
Remote Alarm
Real-time data & alarm, WEB/APP/API supported
