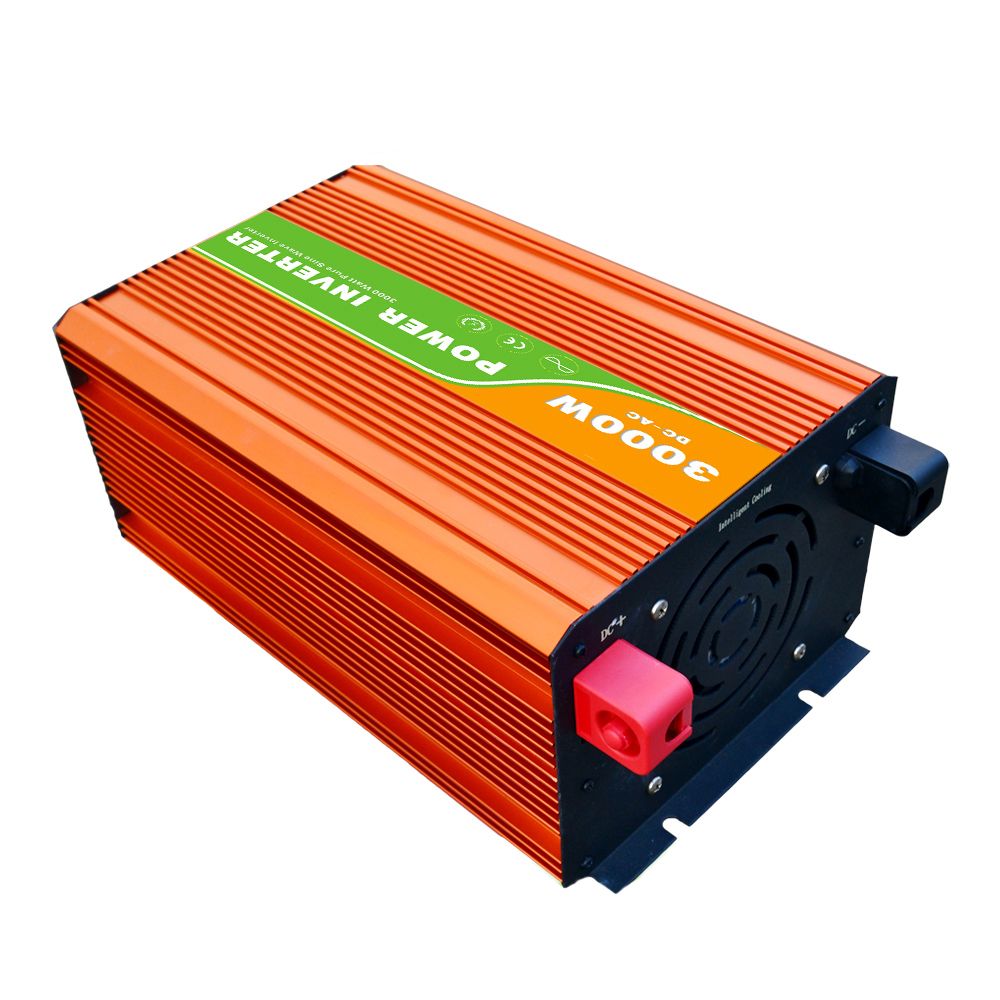

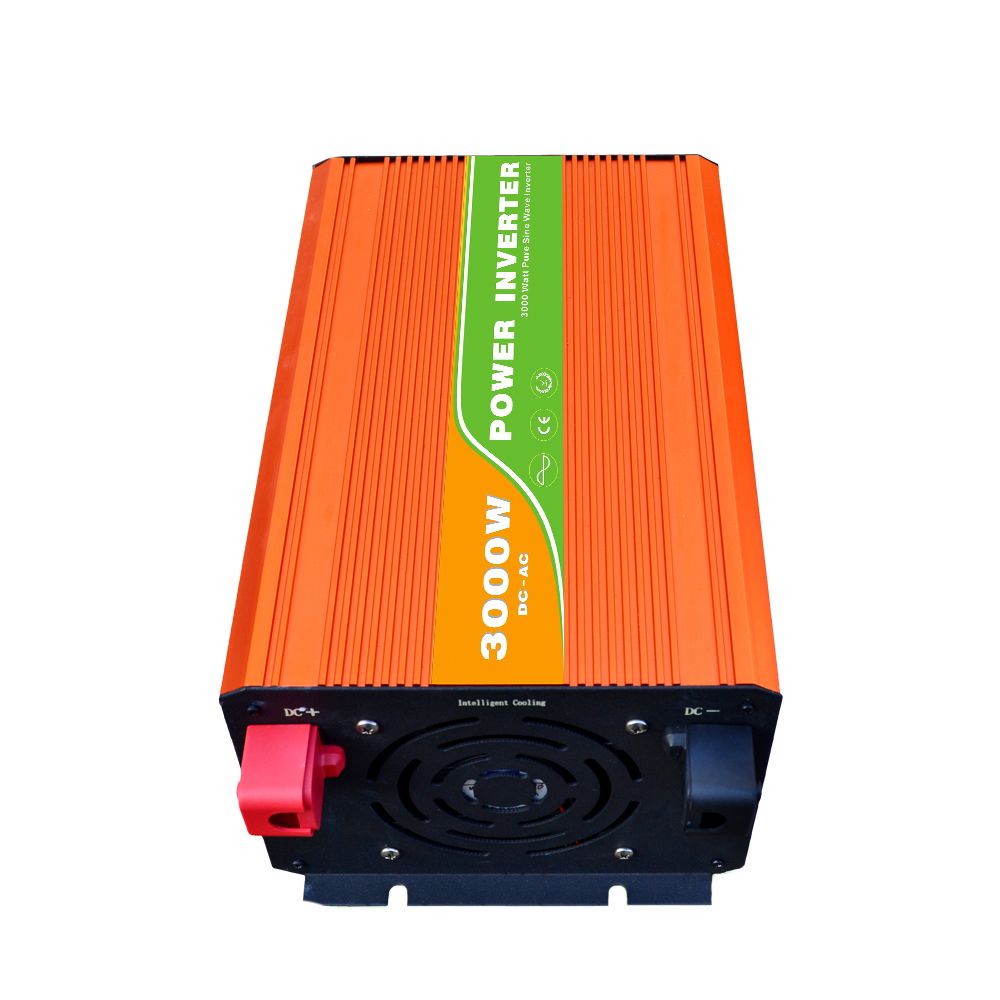

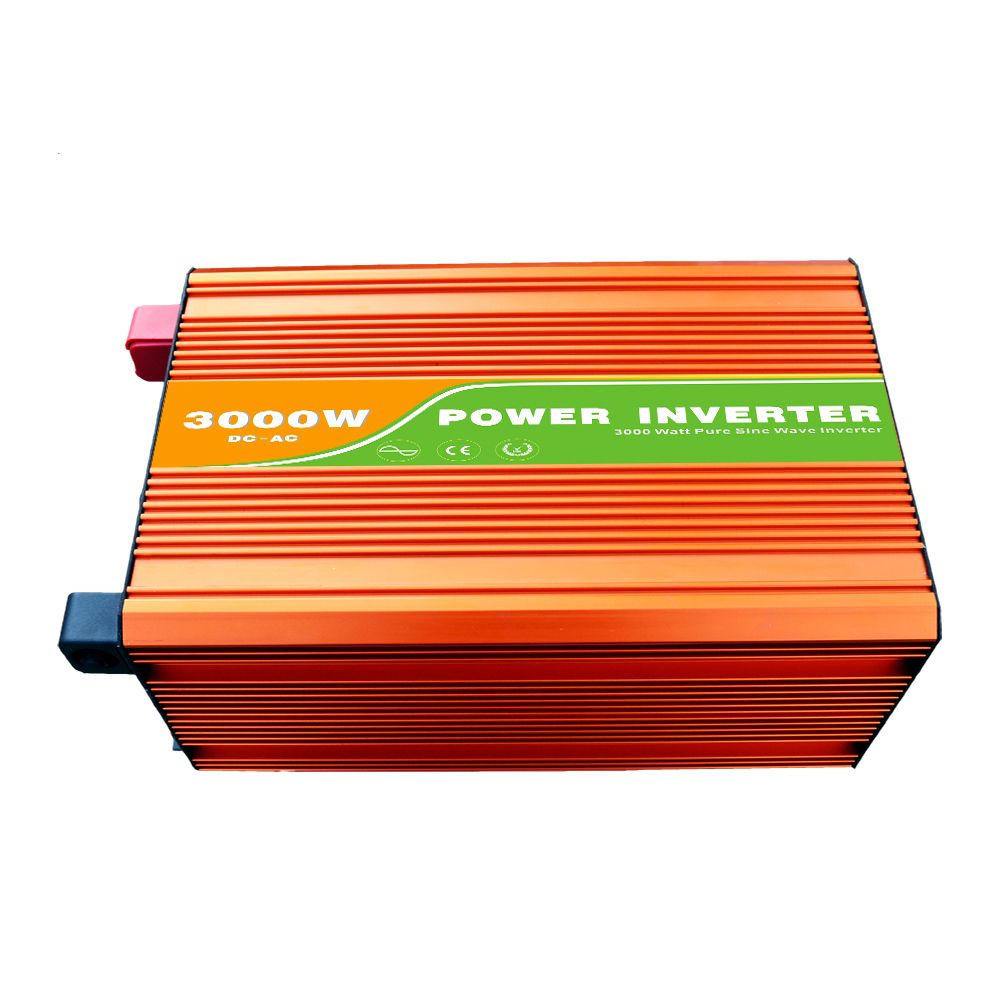

This is a 12V 24V 48V 96V 3000W pure sine wave power inverter which can generate 3000W of continuous power and up to 6000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).
This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) .It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads
Product Parameters:
OUTPUT
OUTPUT VOLT
100/110/120/220/230/240VAC
CONTINUOUS POWER
3000W
SURGE POWER
6000W
WAVEFORM
PURE SINE WAVE
FREQUENCY
50Hz/60Hz
AC REGULATION
LOW & HIGH 10%
Non-load Consumption
<23W
EFFICEINCY
>90%
INPUT
USB OUTPUT
5V
DC VOLTAGE
LED DISPLAY POWER & FAIL STATUS
INPUT RANGE
10-15VDC 21-30VDC 40-60VDC
PROTECTION
WORKING INPUT
12VDC 24VDC 48VDC
FUSE
35A 20A 15A
Low battery alarm
10.5±0.5V 21±0.5V 42±0.5V
Low battery shut down
20±0.5V 20±0.5V 40±0.5V
Over voltage shut down
15.5±0.5V 30.5±0.5V 60±0.5V
Over load shut down
3600W over 10 seconds
Over heating shut down
>75℃
Over Thermal
shut down the output
Working Temperature
BETWEEN -10℃ and +50℃
soft start
OTHER
DIMENSION(L*W*H)
390*216*155mm
INNER BOX DIMENSION
423*304*250mm
CARTON DIMENSION
460*325*260mm
NET WEIGHT
8.9±0.2KG
GROSS WEIGHT
10.3±1KG
PACKING
1PC/CTN
