JN Series Privilege Version Wind and Solar Hybrid Controller

Product characteristics

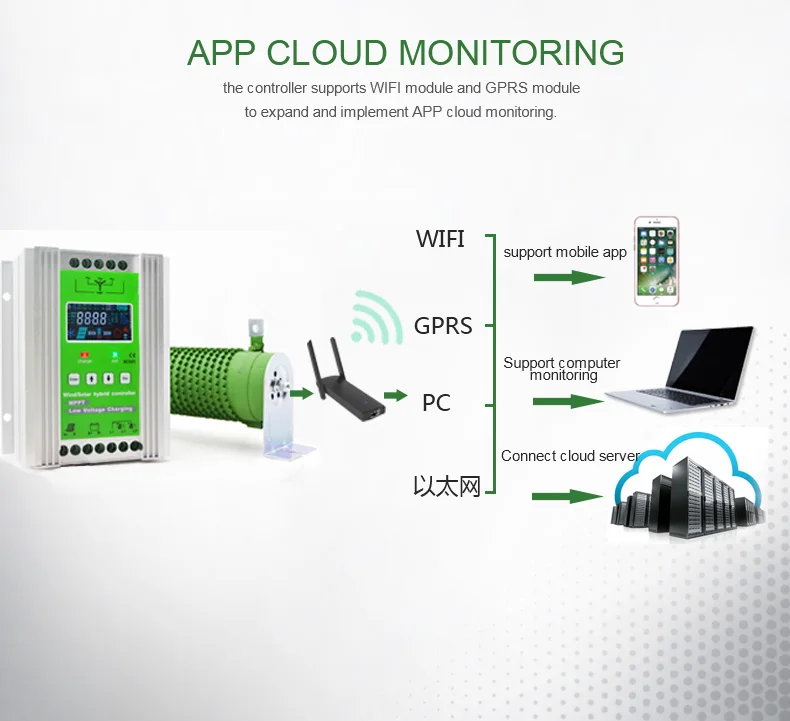

> Remote Monitoring by 3 ways: PC monitoring; WIFI by mobile phone; GPRS by mobile phone.

>This new wind solar hybrid controller is special design for 0-800w wind and 0-600w solar panels for wind >solar street light or home wind solar complementary system.

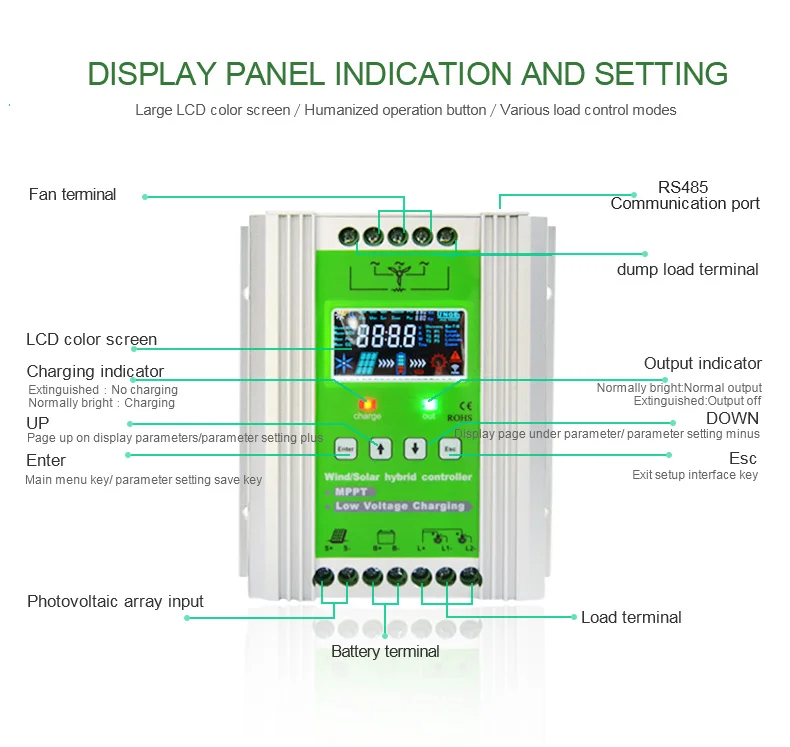

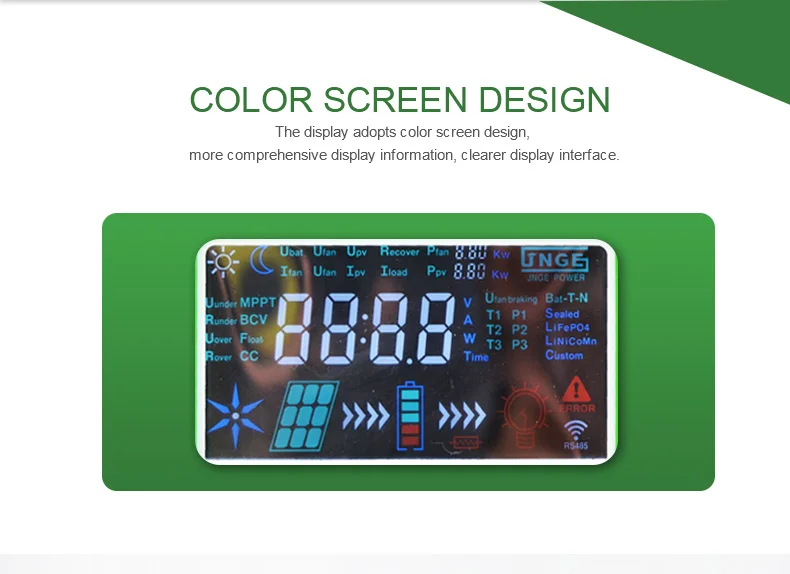

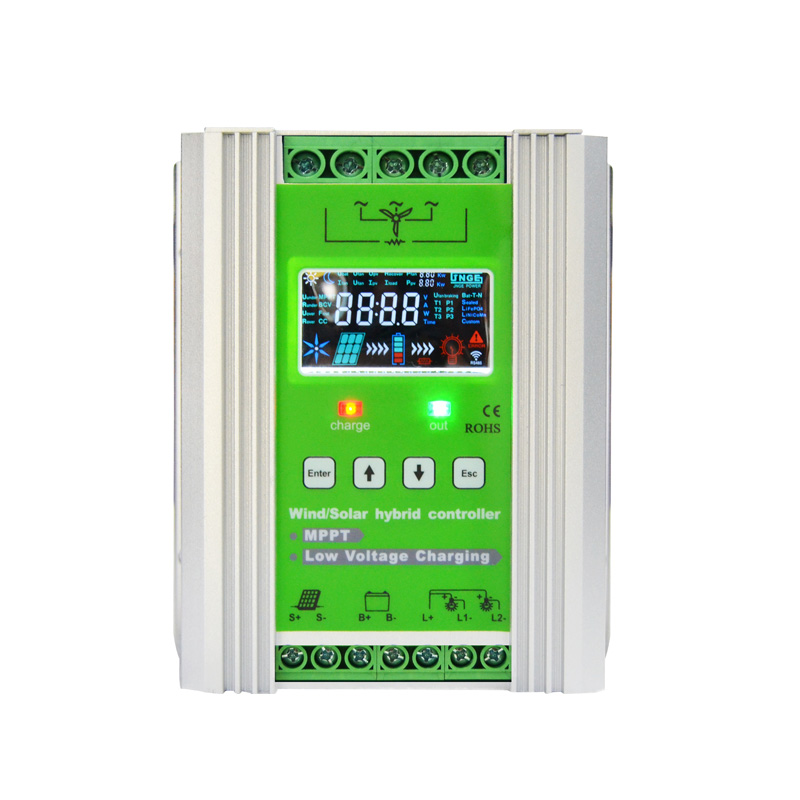

>Appearance is elegant, operations are easy. Uses a custom digital LCD screen can see solar panel ,wind turbine, battery status and four key operation mode. The user to use simple and easy to use, popular and

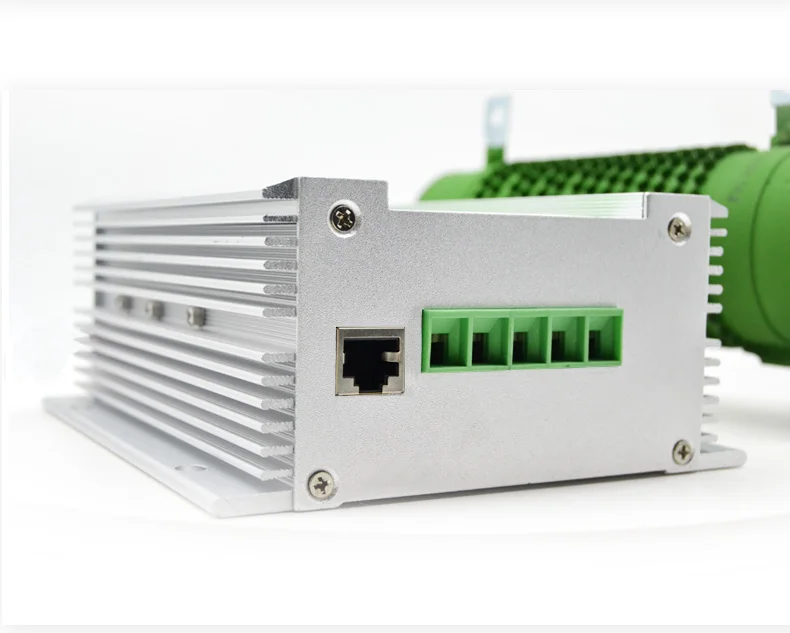

>The inner circuit board of the controller is sprayed to prevent dust, moisture and static electricity, which can effectively prolong the controller' service life.
>This controller can workable to Gel, Lead-acid, Ternary lithium battery and Lithium iron phosphate battery.

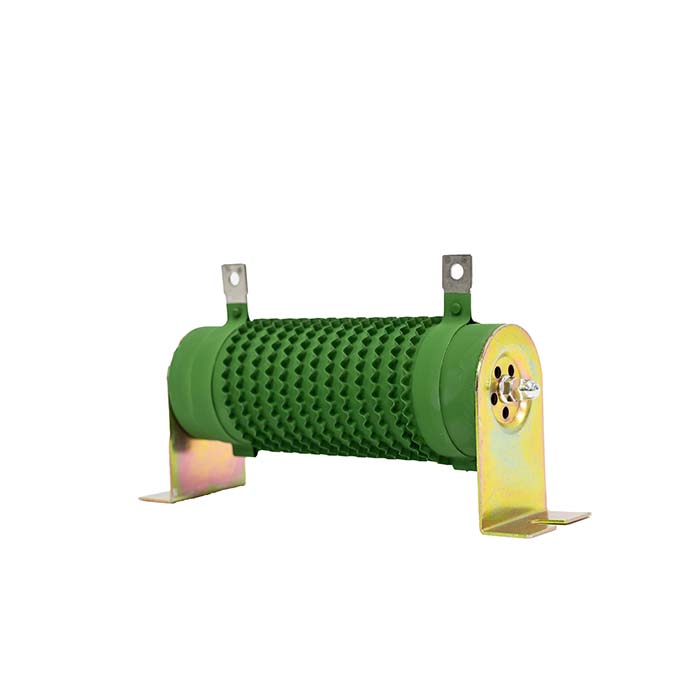

>Lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

Brand:
JNGE
Item No.:
JN-W/S
Brand Name:
JNGE
Application:
Wind solar hybrid system
Charge mode:
PWM+ MPPT
Battery Sytem Voltage:
12/24/48v
PV max. input voltage:
27.6v for 12v battery/ 55.2v for 12v/105v for 48v
PV max. input current:
40a
PV max. power:
1500w
Display:
LCD
Communication:
WIFI/GPRS/Ethernet for optional

share to:

Download Technical Document

product introduction
More Details

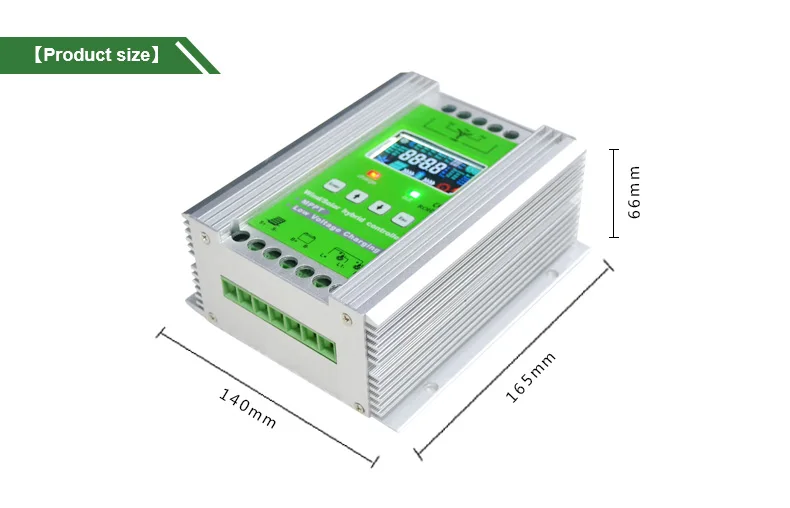

Product Details

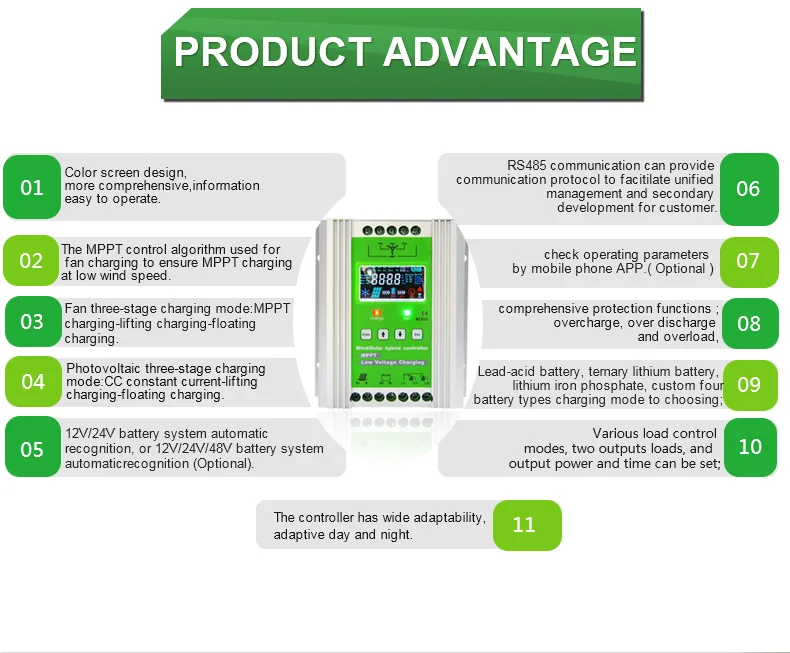

Product Features:

1. LCD display,4 button interface;
2. Photovoltaic and fan three-stage charging mode;
3. 12V /24V/48V battery system automatic identification.
4. With overcharge, overdischarge, overload and other comprehensive protection functions.
5. Lead-acid battery, ternary lithium battery, lithium iron phosphate, custom four battery types of charging methods are optional.

Name	MPPT wind and solar hybrid solar controller（Privilege Version）
Model	JN-12- W300/S500	JN-12- W500/S6 00	JN-24- W600/S800	JN-24- W800/S1000	JN-48- W800/S10 00	JN-48- W1000/S1000	JN-48- W1200/S10 00	JN-48-W1500/S1000
Battery system voltage level	12V	12V	24V	24V	48V	48V	48V	48V
PVarraymaximumopen circuitvoltage	27.6V	55.2V	55.2V	55.2V	105V	105V	105V	105V
RecoveryVoltage after PV array maximum opencircuit voltage (V)	26.4V	52.8V	52.8V	52.8V	100V	100V	100V	100V
PVarrayminimumoperating voltage(V)	>Vbat+1V
Photovoltaic rated current rating (A)	40	50	33	40	21	21	21	21
PVmodule power	500W	600W	800W	1000W	1000W	1000W	1000W	1000W
Fanrated voltage level(V)	12	12	24	24	48	48	48	48
Fanarray maximum open circuitvoltage (V)	25.6		51.2		102.4
Fan rated current (A)	25	40	25	33	17	21	25	33
Wind Turbine Power (W)	300	500	600	800	1000	1000	1000	1000
DC load output rated current(A) （LOAD1+LOAD2）	30A（Maximumone-way15A）
Battery type	Lead acid batteries, gel batteries, lithium iron phosphate, lithium ternary, custom
LCD display	show working status ,error status
Protection Level	IP30
Remark	12V battery system: the maximum power of the fan is 500W, and the maximum power of the PV is 600W; 24V battery system: the maximum power of the fan is 800W, and the maximum power of the PV is 1000W. 48V battery system: the maximum power of the fan is 1500W, and the maximum power of the PV is 1000W.
