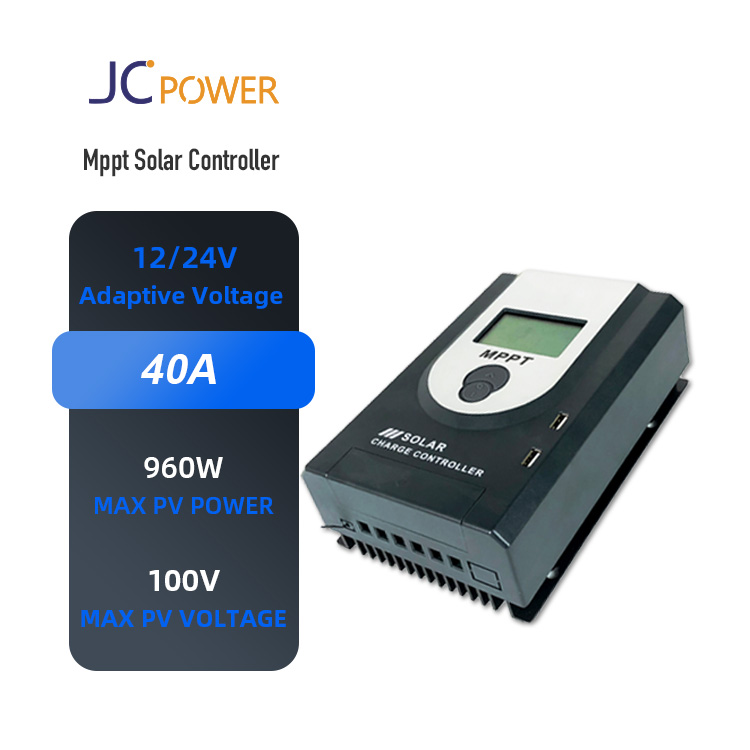

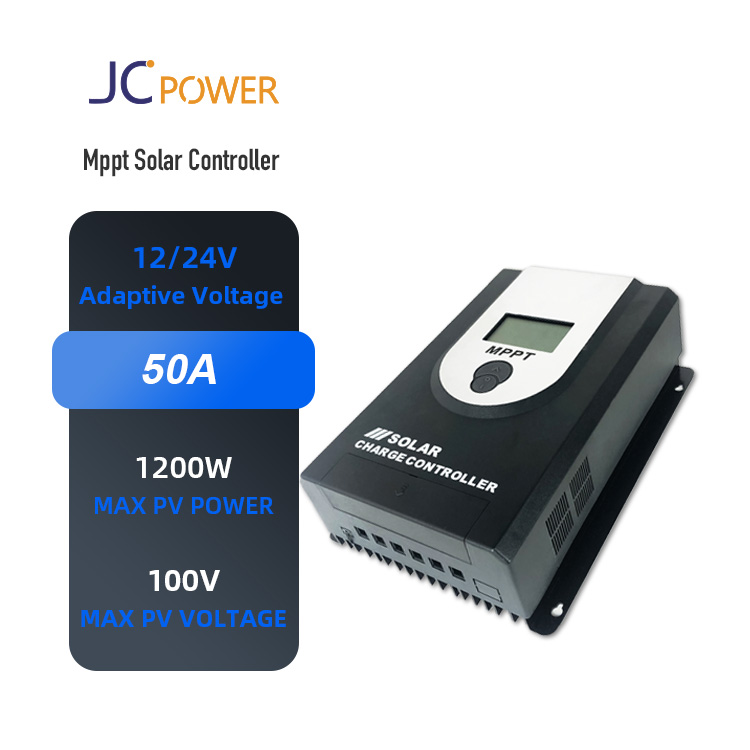

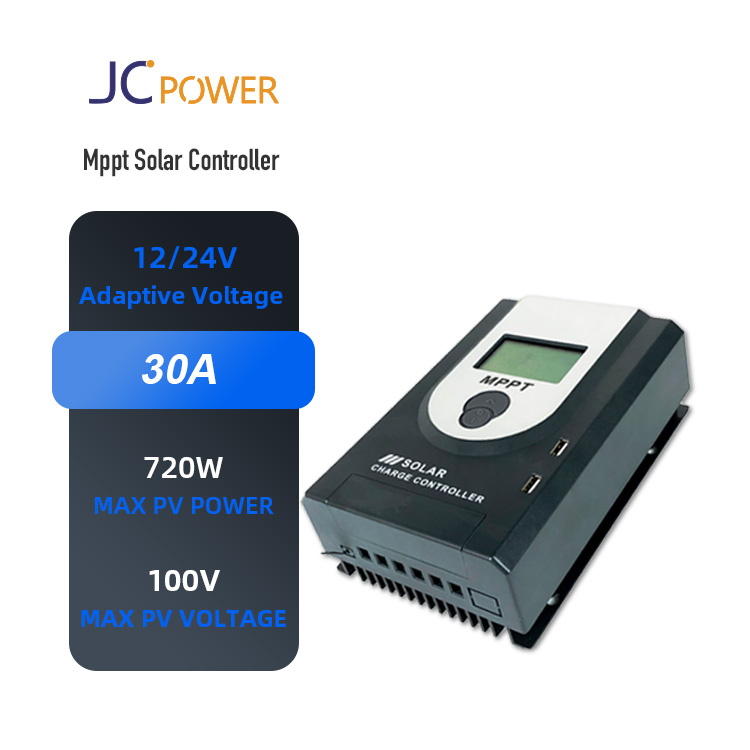

MPJ SERIES MPPT Solar Controller

Product characteristics

MPPT solar controller series ranges from 50a 60a 80a 100a, advanced MPPT maximum power point tracking technology,tracing efficiency more than 99.5%.

share to:

Inquiry now

product introduction
More Details

Products Description

Hefei Jingchi New Energy Co., Ltd.

JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar inverters,controllers and pv solar power generation and battery storage systems, and providing one-stop solutions for pv products.

Model	MPJ20	MPJ40	MPJ60
INPUT
Maximum PV open circuit voltage	100V (at the lowest temperature) 92V (at standard temperature of 25℃)
Minimum PV voltage	20V/40V/60V/80V
Rated charge current	20A	40A	60A
OUTPUT
System voltage	12V/24/36/48V AUTO
Rated discharge current	10A	20A	30A
Own consumption	≤50mA
MPPT highest accuracy	99%
Maximum charging efficiency	97%
Charging control mode	Multi-stage (MPPT, Absorption, Float, Equalization, CV)
Float charge	13.8V/27.6V
Absorption charge	14.4V/28.8V
Equalization charge	14.6V/29.2V
Load disconnection (LVD)	10.8V/21.6V
Load reconnection (LVR)	12.6V/25.2V
Load control mode	Normal, light control, light and timing control, timing control, reverse light control
Light control point voltage	5V/10V/15V/20V
Battery type	GEL, SLD, FLD AND USR (default), LifePO4, Lithium batteries customization
APPEARANCE & ENVIRONMENT
Human interface	LCD with backlight, 2 buttons
Cooling mode	AL alloy heat sink
Wiring	High current copper terminal ≤16mm2 (3AWG)
Temperature probe	build-in
Communication mode	RS485, RJ45 port
Working temperature range	-20 ~ +55 ℃
Storage temperature range	-30 ~ +80 ℃
Humidity	10% - 90% no condendation
